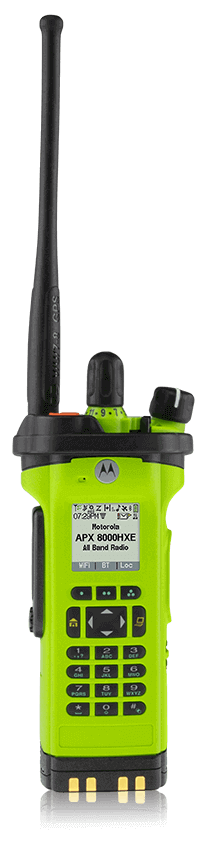

Motorola APX 8000HXE P25 HAZLOC Portable Radio

360 Degrees Of Safety.

As firefighters, you routinely put yourselves in harm’s way. You shouldn’t need to worry that the equipment you carry is up to the task.

As our flagship radio for fire and rescue, the APX™ 8000HXE is designed for the most hazardous conditions. Because the APX 8000HXE is certified to Div 1 HazLoc standards, you can be confi dent entering areas where unknown chemicals and gases add to an already dangerous situation.

Unlimited mobility

With a 4-in-1 radio, you now have the ability to stay connected and expand voice and data communications across multiple agencies with one device. Improve response time by instantly operating on digital or analog networks, in 7/800, VHF, UHF Range 1 and 2 bands at any given time.

Breaking communication barriers, all-band technology connects you with other agencies and departments, no matter which frequency they’re on. And when you need to relay a message in a cacophony of alarms and sirens, the Adaptive Audio Engine dynamically adjusts the radio’s audio response for optimal clarity, every time.

We collaborated closely with fire and rescue workers to develop the APX 8000HXE, and that’s why it’s ready for anything - submersion in deep water, impacts that would destroy a typical radio. With exaggerated controls for gloved-hand use, a pressure-tested tempered glass display and a shock-absorbing aluminum alloy endoskeleton, the APX 8000HXE delivers instant communication with total reliability.

Motorola APX 8000HXE Features and Benefits

Respond with Confidence
Certified to Div1 HazLoc standards, the APX 8000HXE is safe to use in areas where there are high concentrations of flammable gas, vapor, liquid or dust.

All Bands, No Boundaries
The APX 8000HXE transmits and receives on all commonly used frequencies, so your fire and rescue workers can communicate with different agencies using the same radio.

Sound Matters
Make sure you can hear - and be heard. The APX 8000HXE adaptive audio engine gives you the loudest, clearest audio in any environment.

Conquer Chaos
With a water-tight seal, drop-resistant dual battery latch, pressure-tested tempered glass display and a shock-absorbing aluminum alloy endoskeleton, the APX 8000HXE is built to survive everything from falls to floods.

Purpose-Built, Mission Ready
Communicate instantly when lives are on the line. With an intuitive design and exaggerated controls, the APX 8000HXE is purpose-built for fire and rescue workers.

All the Support you Need
Motorola Solutions offers three levels of service plans—Premier, Advanced, and Essential—so you can manage in the way that suits you best.

Operation Modes

• Digital Trunking: 9600 Baud APCO P25 Phase 1 FDMA and Phase 2 TDMA
• Analog Trunking: 3600 Baud SmartNet®, SmartZone®, Omnilink
• Digital Conventional: APCO 25
• Analog Trunking: MDC 1200, Quik Call II
• ASTRO 25 Integrated Voice and Data (Optional)

HAZLOC (UL/CSA)

• Class I, Div 1, Groups C*, D;
• Class I, Div 2, Groups A, B, C, D;
• Class II, Div 1, Group E, F, G;
• Class III; T3C.

Motorola APX 8000HXE Models

Model 2.5
Full bitmap color LCD front display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight.
Full bitmap mono LCD top display, 1 line of text x 8 characters,1 line of status icons, Multi-color backlight
3 Soft Keys, 4 Direction Navigation Key, Home and Data Buttons.

H91TGD9PW8AN
700/800 MHz (792-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 3,000 Channels

Model 3.5
Full bitmap color LCD front display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight.
Full bitmap mono LCD top display, 1 line of text x 8 characters,1 line of status icons, Multi-color backlight
3 Soft Keys, 4 Direction Navigation Key, 4x3 Keypad, Home and Data Buttons.

H91TGD9PW9AN
700/800 MHz (792-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 3,000 Channels

Motorola APX 8000HXE Accessories

Safety Doesn't Stop With The Radio
Extend the power and reliability of your radio with the only complete line of accessories designed, tested and certified for optimal performance with APX portables. Whether it's our industry-leading Remote Speaker Microphone with noise-canceling technology for loud, clear communications or a Mission Critical Wireless Bluetooth earpiece for secure, discreet conversations, our accessories are so comprehensive and flexible, you can trust them to work overtime with your APX radio.

IMPRES™ Smart Audio Accessories
Be clearly heard the first time and eliminate repeating yourself. Whether you need to talk loudly or quietly, into or away from the accessory, IMPRES Audio lowers the loud talker level and raises the soft talker level automatically so listeners do not have to adjust the volume depending on who is talking.

IMPRES Smart Energy System Get the most out of every battery by eliminating the surprise of "low battery alerts." IMPRES chargers tell you exactly how much capacity is in an IMPRES battery before you attach it to your radio and exactly when an IMPRES battery has reached the end of service life.

Mission Critical Wireless Bluetooth® Accessories
The APX Mission Critical Wireless portfolio is skillfully engineered to give first responders enhanced security, quick pairing and fast PTT. Our earpieces provide exceptional audio clarity and volume so messages come through loud and clear in noisy settings. The discreet earbud, which looks like a consumer device, offers private listening in noisier environments. Durable yet lightweight, these wireless accessories fit snugly and comfortably for long shifts.

View the Motorola Original Accessories for the Motorola APX 8000HXE

Motorola APX 8000HXE Downloads and Resources

Brochures

Astro® 25 Two-Way Radios at a Glance Brochure
APX Accessory Catalog
IMPRES Energy Brochure

Spec Sheets

APX 8000HXE Series Data Sheet
