Broadband & LMR Voice Applications
Advanced Recording Solutions For Mission-Critical Communications
EVENTIDE INC.
Eventide's NexLog IP-based NexLog communications recorders are purpose-built Linux appliances specifically designed for Mission-Critical 24/7 operation in dispatch, air traffic management, emergency call-taking and other important communications environments.
Worldwide, users trust Eventide’s mission-critical recording systems to securely and reliably record, protect and reconstruct their most important interactions and related data. By capturing audio and metadata from Motorola’s product line of LMR systems, Eventide allows users to quickly locate specific recordings using PTT and/or TG IDs and package up all recordings involved in an incident for export to other parties, e.g., Senior Management, Attorneys, HR, etc.
Key Benefits
- Improved efficiency, safety and quality of operations by ensuring SOPs are being followed.
- Reduce liability exposure by being able to validate proper procedures were followed during incidents.

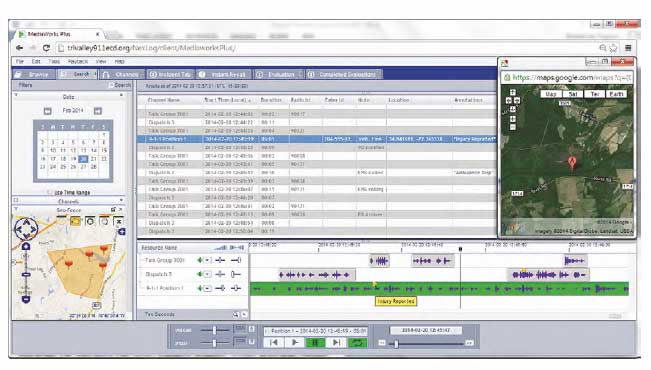

- Intuitive user interface with all the tools needed to locate, replay, package, and export recordings in minutes, not hours.
- Low maintenance, Linux reliability with local support backed by an American Manufacturer.
Key Features
- HTML5 browser interface allows access from any browser with access to the NexLog.
- Linux reliability to ensure all recording are captured all the time.
- Incident management tools with the ability to upload video, .pdf, Word, or other data to an incident.
- Multi-tier security for chain of custody adherence in court cases.
- Performance management tools to ensure SOPs are being followed.
- Holistic view of performance with screen capture, quality assurance and automated operational reporting.
- Supported by local Eventide partners.
System Requirements And Types
- Radio Hardware/Releases Compatibility:.
- For MOTOTRBO (Capacity Plus, Linked Capacity Plus and IP Site Connect); XPR8380, XPR8400, SLR5700 or MTR3000 repeaters with NAI-Voice licenses.
- Computer Hardware / Operating Systems:.
- The NexLog application runs on an Eventide-provided recording appliance. The only other hardware needed is one or more network-connected devices with browser (Windows, MAC, iOS or Android) for configuration, replay and export of recordings.
- IP Technology:
- At least one IP connection to the recorder is required. The NexLog supports up to 4 IP Interfaces:
- Interfaces:
- MOTOTRBO requires NAI-Voice enabled repeaters.
- Compatible with IP Site Connect, Capacity Plus, Linked Capacity Plus 2.5.
Industries
Fire and Emergency Medical Services, Hospitality, National Government Security, Police, Transportation & Logistics, Utilities.
Application Partner
Telephone Interconnect And Alert Notifications
TABLETMEDIA, INC.
phone@trbo interfaces radios to public or corporate office phone systems. It offers the features of a traditional analog phone patch while adding the benefits of both digital telephony and MOTOTRBO radios.
Extensive voice prompts make it friendlier to use for telephone callers and subscribers. Flexible configuration with several modes of operations.
phone@trbo can also be expanded to support email for alert notifications and work order management (tickets) as well as other features.
Key Benefits
- Incoming emergency calls are immediately sent to the AllCall talkgroup without the need to answer them. Automatic outbound dialing on emergency notification from subscribers (including man-down).
- Text messaging includes the caller-ID of an incoming call. In case the call is missed, it is easy to call back by simply replying to the caller-ID text message. Similarly, call filtering notifies phone callers that a radio is offline or they misdialed the group, thus freeing up airtime and the phone line.
- phone@trbo does not burden subscriber radios with an additional repeater entitlement IDs or option boards.
Key Features
- Support private, group and AllCall.
- Multiple incoming phone call routing options: direct patch, voice menus with greeting and SIP-trunking based routing.
- Dial from radio with 1-button dial, hot-keypad or use contacts as address book.
- Ring radios with voice prompting or text messages with caller-ID (return calls by replying to messages).
- Emergency (man-down) automatic dial with pre-recorded voice message.
- Phone call recording to stereo WAV file.
- IETF SIP complaint telephony signaling.
- Supports analogue lines via inexpensive Cisco FXO adapter.
- Half-duplex or 3/4-duplex (using TX interrupt).
- Signal processing to improve voice quality.
- Expand with email, SCADA, dispatch, logging, and other services.
System Requirements And Types
- Radio Hardware/Releases Compatibility:
- Any Motorola MOTOTRBO radio configuration including Connect Plus.
- Computer Hardware/Operating Systems.
- MS-Windows 7 or greater (including Windows Server) with 1.5GHz CPU and 1GB RAM.
- Interfaces:
- USB for control stations for voice path, Data via control station or Ethernet for data NAI repeater interface or XRC controller. Ethernet for other network access.
- Compatible with IP Site Connect, Capacity Plus, Linked Capacity Plus 2.3 and above.
- Compatible with Connect Plus 1.4 and above.
Industries
Fire & Emergency Medical Services, Healthcare, Hospitality, Mining, Oil & Gas, National Government Security, Police, Public Services (non-Public Safety Government), Retail, Transportation & Logistics, Utilities.
Application Partner
Advanced Telephone Interconnect: PBX Integration For MOTOTRBO
TELDIO

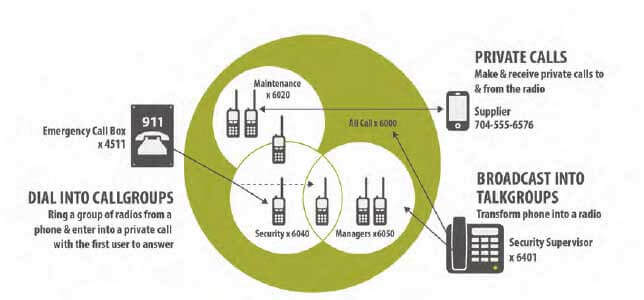

RBX +Plus (Radio Branch Exchange) is an advanced telephone interconnect specifically designed to allow radio users to make and receive phone calls directly on their MOTOTRBO™ radios. RBX +Plus brings all the benefits and functionalities of corporate unified communications to digital radios, enabling users to operate under one private business-critical mobile telephony network.
RBX +Plus goes beyond basic telephone interconnects by allowing radio users to access familiar phone-like features, such as call history, phonebook, and caller ID. It gives users the ability to truly control their mobile communications coverage area while reducing mobile communications costs without sacrificing functionality. RBX +Plus streamlines communication between phone and radio users with private calls, talkgroups and callgroups. The app was designed to easily scale, and can connect digital two-way radios to something as simple as a standard POTS phone line or as complex as a digital corporate phone system (PBXs).
This application provides organizations with a compelling alternative to cellular and Wi-Fi solutions for their mobile workforce. While staying connected in any location is paramount, Teldio delivers the same cellular functionality directly to the mobile worker’s radio, leveraging existing radio and telephony infrastructure in a whole new way.
Key Benefits
- Reduce Operational Costs - by adding RBX to the radio network, costly monthly operational costs such as cell phones, Nextel phones, and Wi-Fi phones can be eliminated.
- Enhance Worker Safety and Security - with the addition of RBX mobile workers are always connected whether they broadcast emergency messages, request help from an internal department or directly dial 911.
- Increase Productivity - by enabling radio users to make and receive calls, mobile workers no longer need to rely on multiple mobile devices to communicate.
- Improve Communication - RBX provides mobile telephony coverage where mobile phone providers cannot. RBX allows users to place & receive calls anywhere within the private radio infrastructure coverage.
Key Features
- Call history.
- Integrated phonebook.
- Caller ID display.
- Speed dialing.
- Call transferring.
- Do not disturb mode.
- Auto answer mode.
- Call recording and logging.
- User provisioning.
- Talkgroup phone calls.
- Date, time & stopwatch.
System Requirements And Types
- Radio Hardware/Releases Compatibility:
- 1 XPR 4000 or 5000 series control station (base radio) per channel on which phone calls should take place.
- Motorola Expansion Card in each radio which needs to make/receive a private phone call.
- Computer Hardware/Operating Systems:
- Intel® Core™2 Quad / Intel® Core™2 Duo / Intel® Pentium® or similar, Windows 7 Professional 64-Bit / Windows 8 Professional 64-Bit / Windows Server 2008/2012, 4GB 1333MHz Dual Channel DDR3 SDRAM or higher, Minimum 160GB Hard Drive, Integrated: 10/100/1000 Ethernet LAN on system board, minimum four (4) externally accessible USB Ports, Sound Card per Control Station.
- IP Technology
- IP connection to the Customer PBX via SIP Trunking.
- Interfaces:
- IP PBX SIP Trunking, Analog T1 Trunking, PSTN, Internet Telephony Service Provider (ITSP)
- Compatible with IP Site Connect, Capacity Plus, Linked Capacity Plus.
Industries
Hospitality, Mining, Oil & Gas, Retail, Utilities.
